Send InquiryIR THROUGH BEAM SENSOR - RECTANGULAR 4028
Price 10001.0 INR/ Piece
MOQ : 1 Piece
IR THROUGH BEAM SENSOR - RECTANGULAR 4028 Specification
- Cable Length
- 2 meters (standard)
- Mounting Type
- Panel/Surface Mount
- Operating Temperature
- -25C to +55C
- Power Consumption
- < 20mA
- Sensor Type
- Photoelectric Sensor (Through Beam)
- Interface
- Cable (3-wire/4-wire)
- Application
- Assembly Line Counting, Object Detection, Safety Barrier
- Wireless
- No
- Signal Type
- Digital
- IP Rating
- IP65
- Sensitivity
- Adjustable by Potentiometer
- Measurement Range
- Up to 15 meters
- Response Time
- < 1ms
- Features
- High Reliability, Easy Installation, Compact Design
- Product Type
- IR Through Beam Sensor
- Input
- 10-30V DC
- Output
- NPN/PNP
- Function
- Object Detection via Interruption of IR Beam
- Usage
- Industrial Automation, Security Systems
- Accuracy
- High Accuracy
- Resolution
- Detection of Small Objects
- Voltage
- 10-30V DC
- Weight
- Approx. 90g (per set)
- Material
- abs plastic
- Connection Type
- Pre-wired
- Vibration Resistance
- 10~55 Hz, 1.5 mm amplitude
- Housing Dimension
- 40 x 28 x 18 mm (L x W x T)
- Active Area Dimension
- 18 x 33 mm sensor face
- Electromagnetic Compatibility
- IEC 61000-4-2, IEC 61000-4-4
- Storage Temperature
- -40C to +70C
- Switching Frequency
- 500 Hz
- Light Source
- Infrared LED, 940 nm
- Receiver Type
- Phototransistor
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Banner Sensor Category
IR DIFFUSE - RECTANGLE 5055
Minimum Order Quantity : 1 Piece
Material : abs plastic
Product Type : IR Diffuse Sensor Rectangle 5055
Voltage : 30 Volt (v)
Accuracy : 1 mm
S18UBAR Banner Make Sensor
Price 22022 INR / Unit
Minimum Order Quantity : 10 Units
Material : Plastic
Product Type : Banner Make Sensor
Voltage : 220 Volt (v)
Accuracy : 95 %
Mini Beam Photoelectric Beam Sensor
Price 12800 INR / Unit
Minimum Order Quantity : 10 Units
Material : Metal
Product Type : Photoelectric Beam Sensor
Accuracy : 95 %

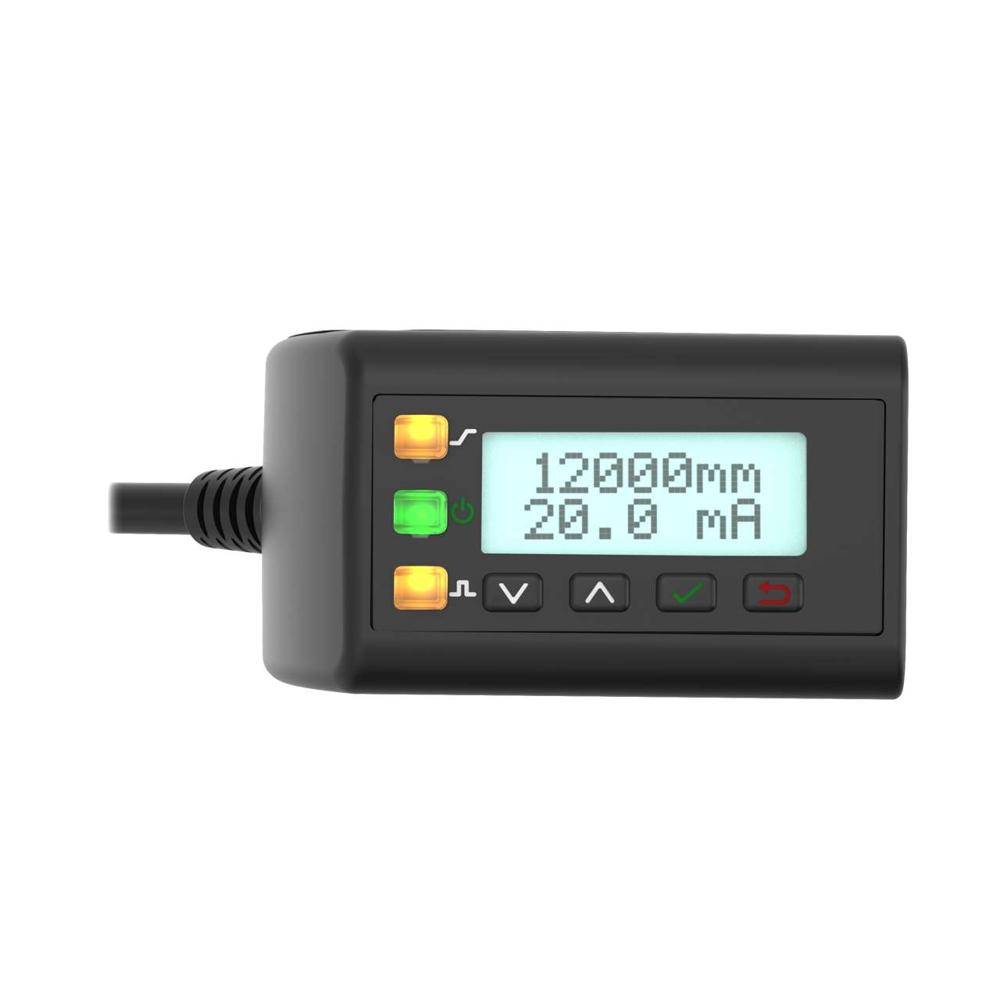

LTF12IC2LD Long-Range Time-of-Flight Laser Sensor
