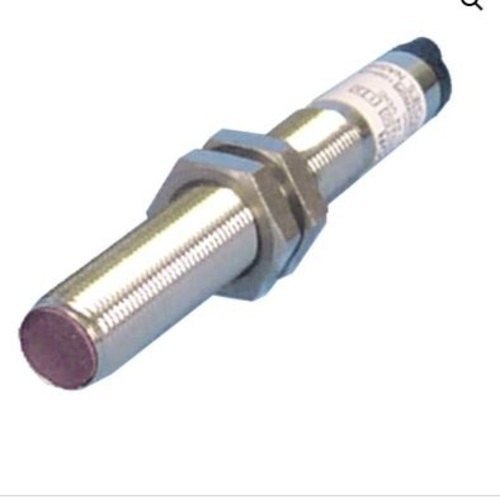

Send InquiryIR DIFFUSE DIA M12 3 WIRE
MOQ : 1 Piece
IR DIFFUSE DIA M12 3 WIRE Specification
- Sensor Type
- Photoelectric (Diffuse)
- Signal Type
- Digital Output
- IP Rating
- IP67
- Application
- Industrial Automation, Packaging, Conveyors
- Features
- LED Status Indicator, Short-circuit Protection, Reverse Polarity Protection
- Cable Length
- 2 meters
- Sensitivity
- Adjustable via Potentiometer
- Interface
- 3 Wire Connection
- Mounting Type
- M12 Threaded, Easy Mount
- Operating Temperature
- -25C to +55C
- Measurement Range
- 10-100 mm (Adjustable)
- Response Time
- < 1 ms
- Wireless
- No
- Power Consumption
- < 15mA
- Product Type
- proximity sensor
- Material
- brass
- Input
- 10-30V DC
- Output
- NPN or PNP (NO/NC) 3 Wire
- Function
- Object Detection via Infrared Diffuse Reflection
- Usage
- Non-contact Sensing
- Accuracy
- High
- Resolution
- Precise Object Positioning
- Voltage
- 30 Volt (v)
- Weight
- Approx. 25g
- Housing Color
- Nickel Plated
- Max Load Current
- 100 mA
- Detection Angle
- 15
- Switching Frequency
- Up to 500 Hz
- Vibration Resistance
- 10 to 55 Hz, Double Amplitude 1.5 mm
- Light Source
- Infrared LED 880 nm
- Applications
- Detection of Bottles, Boxes, Pallets, Transparent or Opaque Materials
- Storage Temperature
- -30C to +70C
- Enclosure Diameter
- M12
- Connector Type
- Pre-wired Cable
- Ambient Light Immunity
- Up to 10,000 lux
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Banner Sensor Category
Q4X Distance Measurement Sensor And Laser Displacement Sensor
Price 45465 INR / Unit
Minimum Order Quantity : 1 Unit
Product Type : Measurement Sensor And Laser Displacement Sensor
Material : ABS
T18-2VNFF200IR-Q8 Rugged, Washdown Sensors for Harsh Environments
Price 9108.0 INR / Piece
Minimum Order Quantity : 1 Piece
Product Type : rugged sensor
Input : 10 v
Material : plastic
Output : 30 v

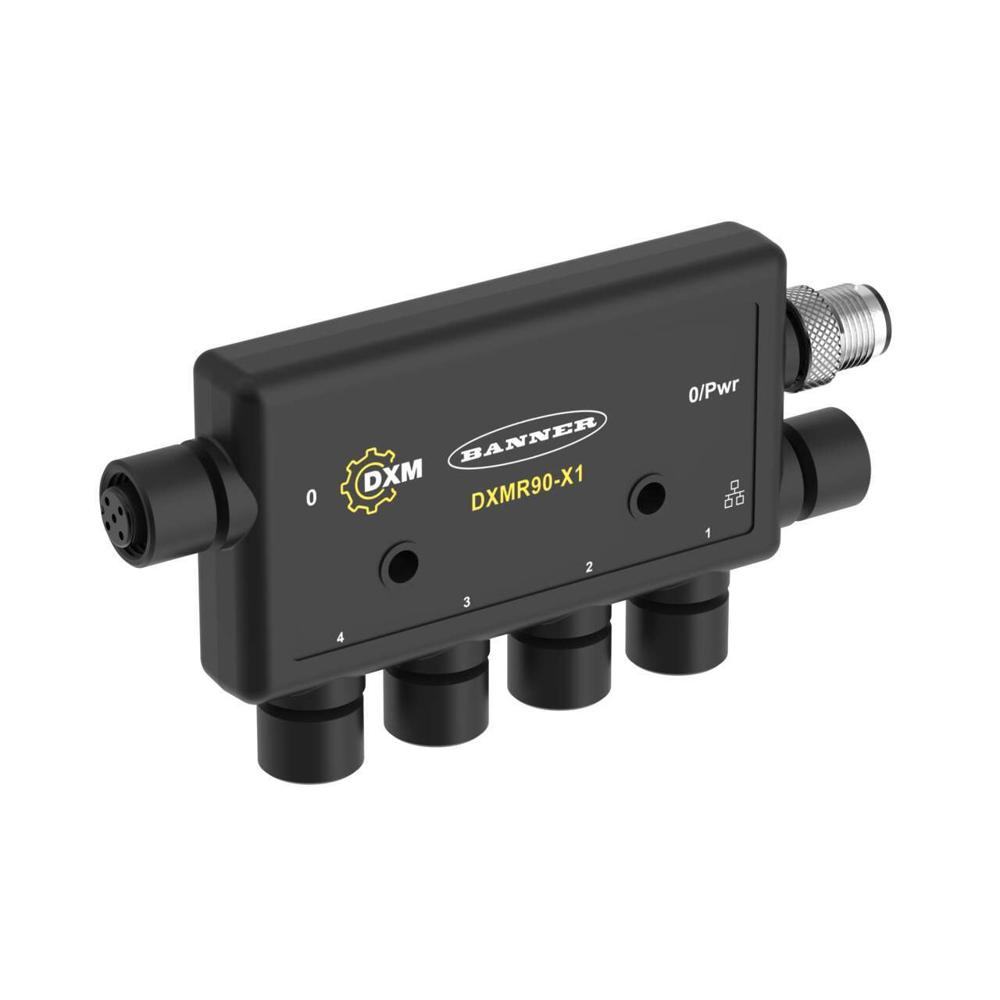

DXMR90-X1 Industrial Controller
Price 50736.0 INR / Piece
Minimum Order Quantity : 1 Piece
Product Type : sensor
Input : 12 v
Output : 30 v

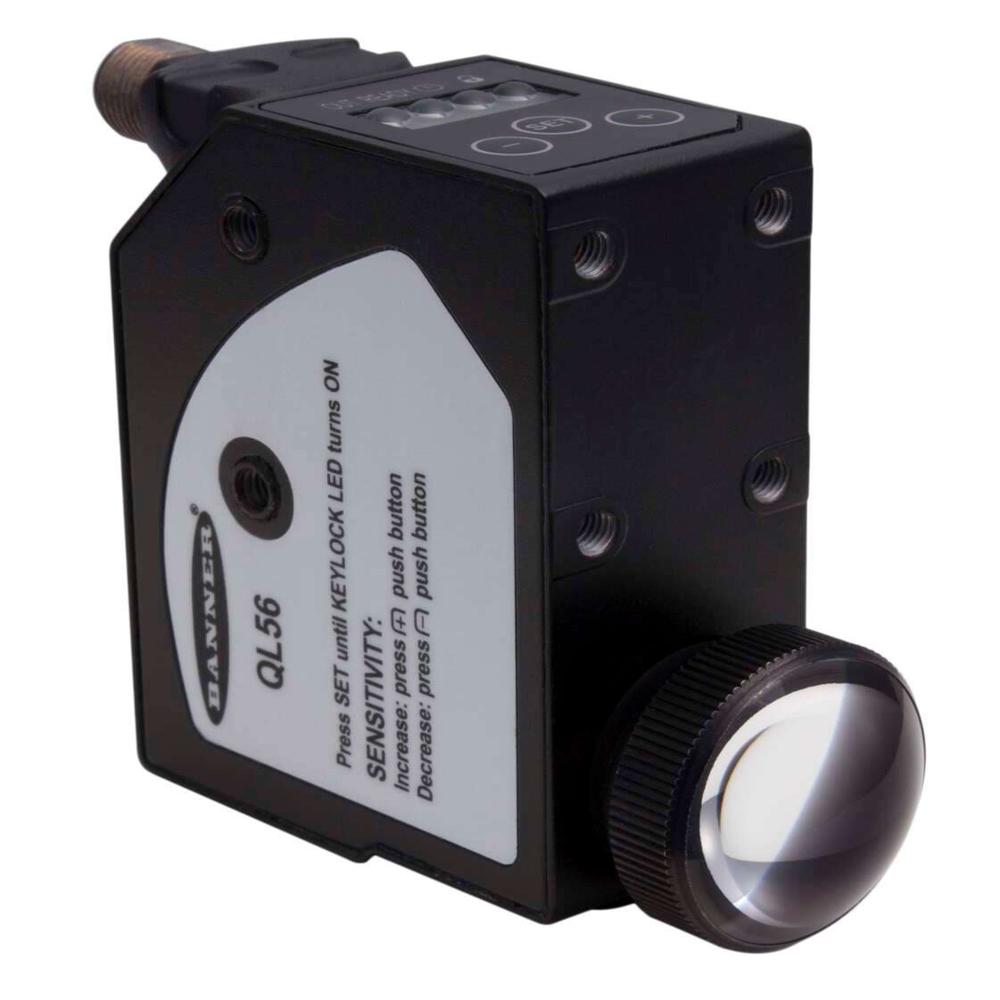

QL56M6XD40BQ Rugged Housing Luminescence Sensor
