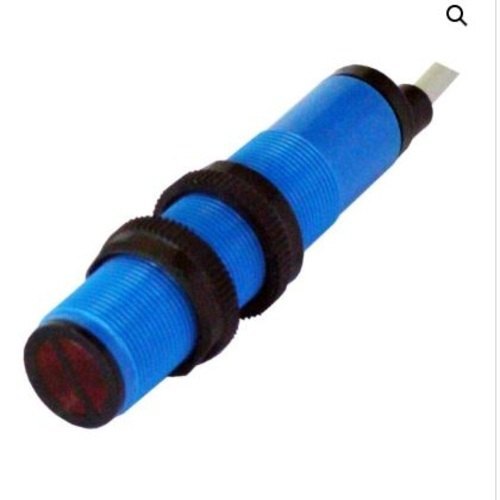

Send InquiryIR DIFFUSE DIA M18 - 4 WIRE
MOQ : 1 Piece
IR DIFFUSE DIA M18 - 4 WIRE Specification
- Sensitivity
- Adjustable via potentiometer
- Signal Type
- Digital Output
- IP Rating
- IP67
- Application
- Industrial Automation, Conveyor Systems, Packaging, Manufacturing
- Sensor Type
- Photoelectric Sensor
- Features
- Short-circuit and overload protection, LED indicator
- Interface
- 4-wire connection
- Mounting Type
- M18 Threaded Barrel Mount
- Operating Temperature
- -25C to +55C
- Response Time
- <1 ms
- Wireless
- No
- Power Consumption
- 20 mA
- Measurement Range
- 10 mm to 500 mm (adjustable)
- Cable Length
- 2 meters fixed cable
- Product Type
- IR Diffuse Sensor
- Material
- brasss
- Input
- 12-24 V DC
- Output
- pnp
- Function
- Diffuse proximity sensing
- Usage
- Object detection, Automation systems
- Accuracy
- High accuracy design
- Resolution
- Fine resolution for small object detection
- Voltage
- 12-24 V DC
- Weight
- Approx. 50 g
- Polarity Protection
- Yes
- Vibration Resistance
- 10-55 Hz, 1.5 mm amplitude in X, Y, Z directions
- Ambient Light Immunity
- Strong resistance to ambient light interference
- Relative Humidity
- 35% to 85% RH (non-condensing)
- EMC Compliance
- IEC60947-5-2 Standard
- Switching Frequency
- Up to 500 Hz
- Storage Temperature
- -30C to +70C
- Adjustment Type
- Manual sensitivity adjustment (potentiometer)
- LED Status Indicator
- Yes (operation and detection status)
- Mechanical Life
- >100,000 hours
- Housing Color
- Yellow & Black
- Shock Resistance
- 500 m/s2 (approx. 50G) 3 times per direction
- Detection Method
- Diffuse reflection using infrared light
- Min. Object Detection Size
- 2 mm
- Connection Type
- Pre-wired cable
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Banner Sensor Category
BWA CURRENT TRANSFORMER
Minimum Order Quantity : 1 Piece
Product Type : Current Transformer
Material : Epoxy Resin Encapsulated
Usage : Electrical Panel Monitoring, Protection Relays
Accuracy : Class 1.0 / 0.5
Q4X Distance Measurement Sensor And Laser Displacement Sensor
Price 45465 INR / Unit
Minimum Order Quantity : 1 Unit
Product Type : Measurement Sensor And Laser Displacement Sensor
Material : ABS
Usage : Industrial
Accuracy : 95 %

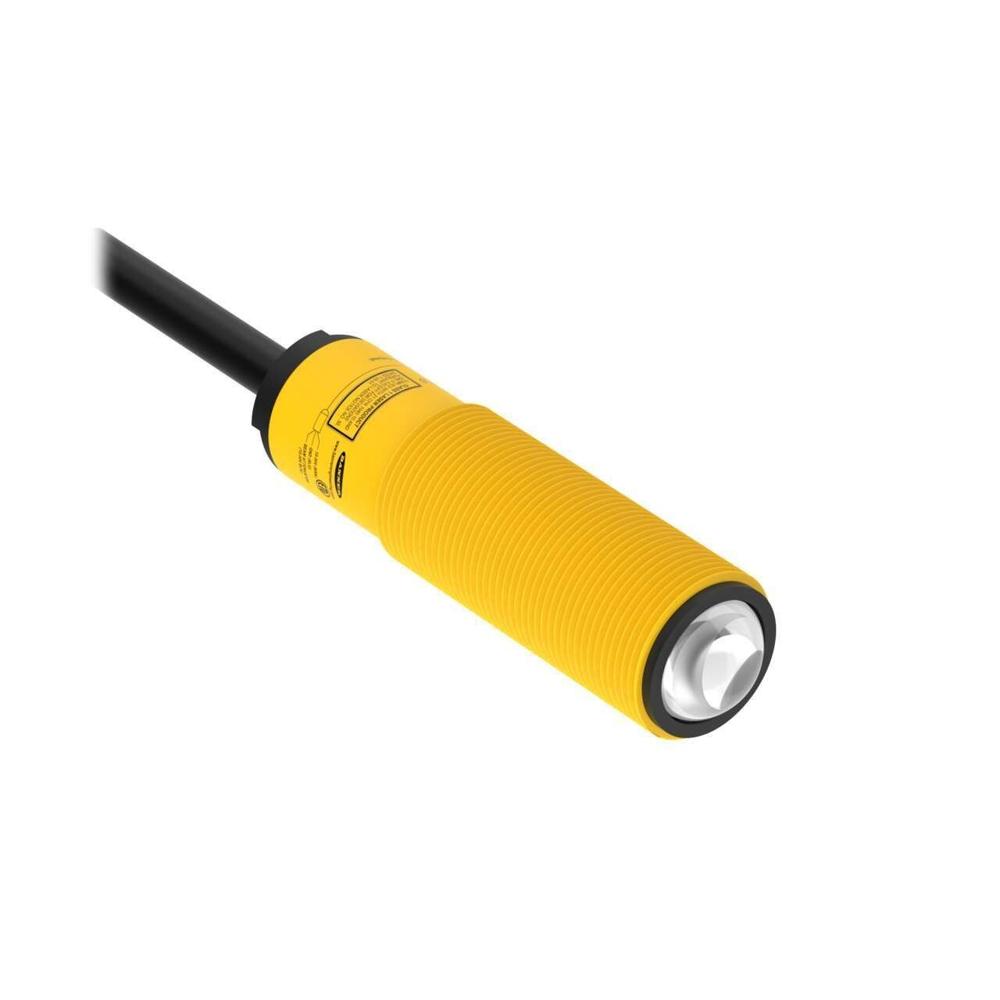

Plastic Barrel Laser Emitter S186ELD Series
