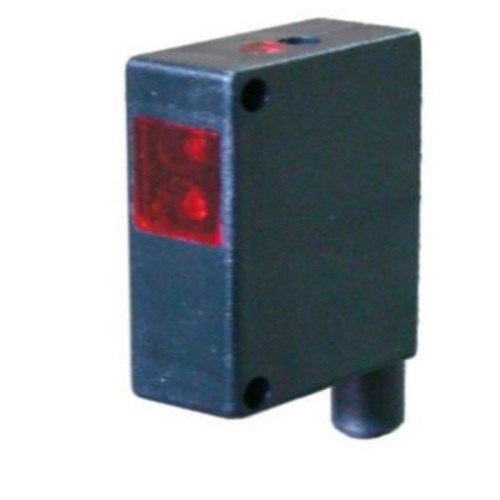

Send InquiryIR DIFFUSE MINIATURE RECTANGLE 4028
MOQ : 1 Piece
IR DIFFUSE MINIATURE RECTANGLE 4028 Specification
- Operating Temperature
- -25C to +55C
- Cable Length
- 2 meters standard
- Sensor Type
- Infrared Diffuse Reflective
- Mounting Type
- Panel or Bracket Mount
- IP Rating
- IP67 Dust and Waterproof
- Wireless
- No
- Measurement Range
- 10-30 cm Adjustable
- Interface
- Hardwired (Cable)
- Sensitivity
- Adjustable
- Response Time
- <1 ms
- Features
- Miniature Size, High Reliability, Reverse Polarity Protection, Short Circuit Protection
- Signal Type
- Digital (Switching Output)
- Power Consumption
- 20 mA
- Application
- Industrial Automation, Packaging, Conveyors, Machine Equipment
- Product Type
- IR Diffuse Miniature Rectangle Sensor
- Input
- 10-30 VDC
- Output
- PNP/NPN
- Function
- Object Detection by Infrared Diffuse Reflection
- Usage
- Position Sensing, Object Presence Detection on Automation Lines
- Accuracy
- High Precision Sensing
- Resolution
- Detects Small Objects up to 1 mm
- Voltage
- 10-30 VDC
- Weight
- Approx. 20 grams
- Display Type
- NO
- Material
- PLASTIC
- Switching Frequency
- Up to 500 Hz
- Material Finish
- Matte Black Anti-Glare
- Connection Type
- 3-wire or 4-wire cable
- Bracket Included
- Yes, Mounting Bracket Provided
- Ambient Light Immunity
- Strong (resistant to environmental lighting)
- Indicator
- LED Status Indicator
- Light Source
- Infrared LED
- Housing Dimensions
- 40 mm x 28 mm x 15 mm (approx.)
- Shock Resistance
- Up to 30 g (11 ms)
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Banner Sensor Category
DUAL CROSS BEAM SENSOR DBX 013/4-1 MTR RANGE
Price 10001.0 INR / Piece
Minimum Order Quantity : 1 Piece
Material : ABS Plastic Housing
Voltage : 30 Volt (v)
Input : DC 1224V
Product Type : Dual Cross Beam Sensor
QT50R-EU-AFH COLLISION AVOIDANCE RADAR SENSOR
Price 759300.0 INR / Piece
Minimum Order Quantity : 1 Piece
Material : abs plastic
Input : 12 v
Product Type : sensor
K100B-BLRAQ BEACON SERIES
Price 17112.0 INR / Piece
Minimum Order Quantity : 1 Piece
Material : Polycarbonate
Voltage : 48 Volt (v)

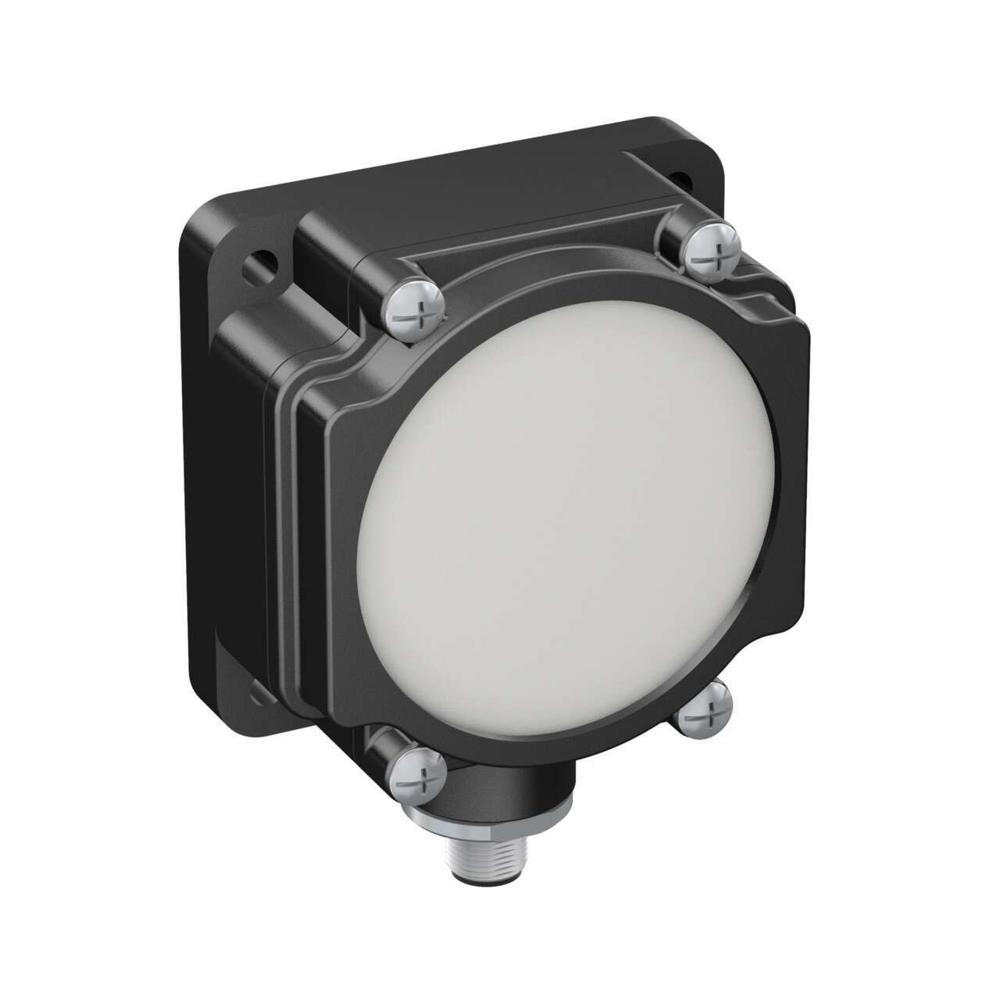

K80L1GXXX1PQ Segmented Indicators
