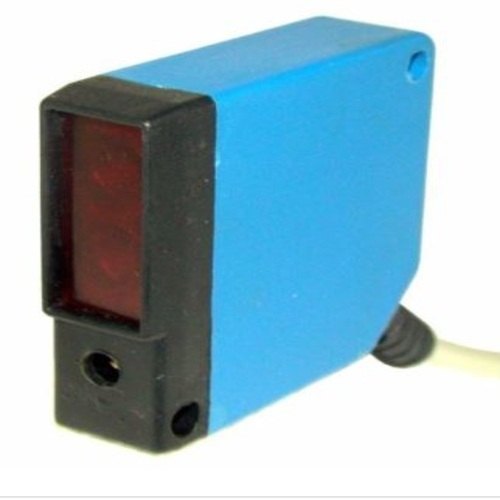

Send InquiryIR DIFFUSE - RECTANGLE 5055
MOQ : 1 Piece
IR DIFFUSE - RECTANGLE 5055 Specification
- Sensor Type
- Photoelectric Diffuse
- Features
- Compact size, High EMC immunity, Short-circuit protection, Reverse polarity protection
- Sensitivity
- Adjustable (via potentiometer)
- Application
- Packaging, Assembly Lines, Material Handling
- Wireless
- No
- Response Time
- < 10 ms
- Mounting Type
- Panel or Bracket Mount
- Interface
- 3-wire DC
- Signal Type
- Switching Signal (Digital)
- Operating Temperature
- -25C to +55C
- IP Rating
- IP67
- Measurement Range
- 5 cm to 150 cm (adjustable)
- Power Consumption
- < 1.5 W
- Cable Length
- 2 meters fixed cable
- Product Type
- IR Diffuse Sensor Rectangle 5055
- Material
- abs plastic
- Input
- Infrared Light Source
- Output
- NPN/PNP, NO+NC
- Function
- Diffuse Reflective Object Detection
- Usage
- Industrial Automation; Object Sensing
- Accuracy
- 1 mm
- Resolution
- 0.5 mm
- Voltage
- 30 Volt (v)
- Weight
- Approx. 80 g
- Light Source Wavelength
- 950 nm IR GaAs LED
- Operating Humidity
- 35% to 85% RH (non-condensing)
- Connection Type
- Pre-wired
- Max Switching Frequency
- 500 Hz
- Storage Temperature
- -40C to +70C
- Housing Color
- Black
- Ambient Light Immunity
- Up to 10,000 lux (sunlight), 5,000 lux (incandescent)
- Lens Material
- PMMA (Acrylic)
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Banner Sensor Category
IR DIFFUSE DIA M18 - 4 WIRE
Minimum Order Quantity : 1 Piece
Material : brasss
Product Type : IR Diffuse Sensor
IP Rating : IP67
Input : 1224 V DC

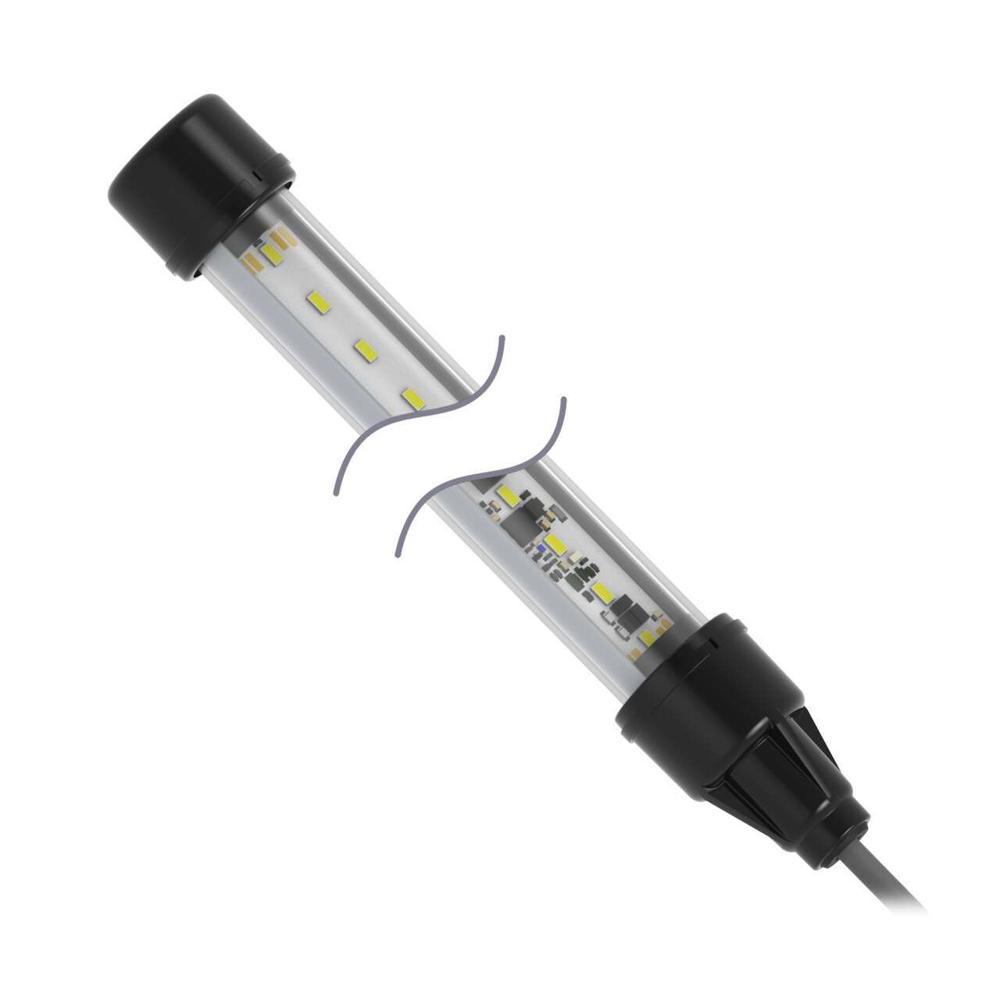

HLS27DGYR3S-430C24 Hazard Indicator with EZ-STATUS
