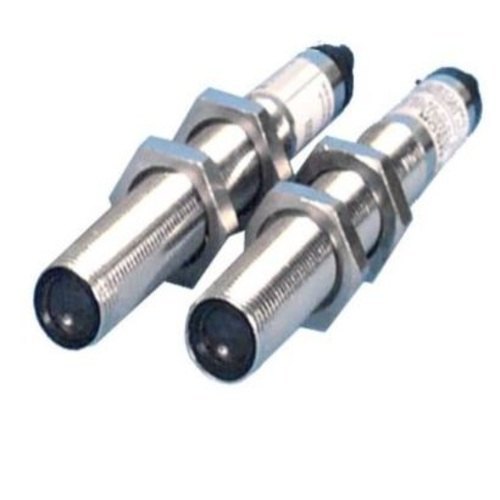

Send InquiryIR THROUGH BEAM SENSOR - M12
Price 10001.0 INR/ Piece
MOQ : 1 Piece
IR THROUGH BEAM SENSOR - M12 Specification
- Features
- Compact Size, Easy Installation, LED Indicator
- Sensor Type
- Infrared Through Beam
- IP Rating
- IP67
- Mounting Type
- M12 Threaded Mounting
- Wireless
- No
- Signal Type
- Digital
- Measurement Range
- 0-5m (Adjustable)
- Operating Temperature
- -20C to +60C
- Application
- Conveyor Systems, Packaging, Assembly Lines
- Sensitivity
- Adjustable potentiometer
- Interface
- 2/3 wire Connection
- Power Consumption
- <20mA
- Response Time
- <1ms
- Product Type
- IR Through Beam Sensor
- Material
- Metal Housing, Polycarbonate Lens
- Input
- 10-30V DC
- Output
- NPN/PNP
- Function
- Object Detection using Infrared Through Beam
- Usage
- Automation, Industrial Safety, Object Counting
- Accuracy
- High Accuracy
- Resolution
- Detects objects as small as 0.5mm
- Voltage
- 10-30V DC
- Weight
- Approx. 80g
- Display Type
- no
- Sensing Method
- Transmitter and Receiver Pair
- Housing Diameter
- 12mm (M12)
- Short Circuit Protection
- Yes
- Shock Resistance
- 500m/s2 (50G), 3 times in each direction
- Beam Type
- Modulated Infrared Light
- Vibration Resistance
- 10-55Hz, 1.5mm double amplitude
- Maximum Load Current
- 100mA
- Indication
- LED Status for Power and Output
- Connector Type
- Prewired Cable
- Material Finish
- Nickel-plated Brass
- Storage Temperature
- -25C to +75C
- Polarity Protection
- Yes
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Banner Sensor Category

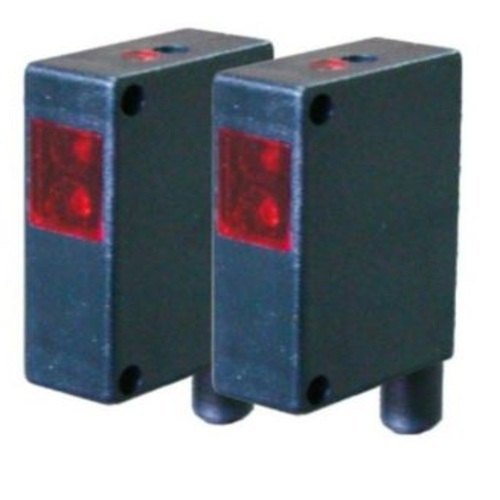

IR THROUGH BEAM SENSOR - RECTANGULAR 4028
Price 10001.0 INR / Piece
Minimum Order Quantity : 1 Piece
Product Type : IR Through Beam Sensor
Material : abs plastic
Input : 1030V DC
Sensor Type : Photoelectric Sensor (Through Beam)
Color sensor QCM50 Series
Price 50000 INR / Number
Minimum Order Quantity : 1 Number
Product Type : Color sensor
Material : plastic

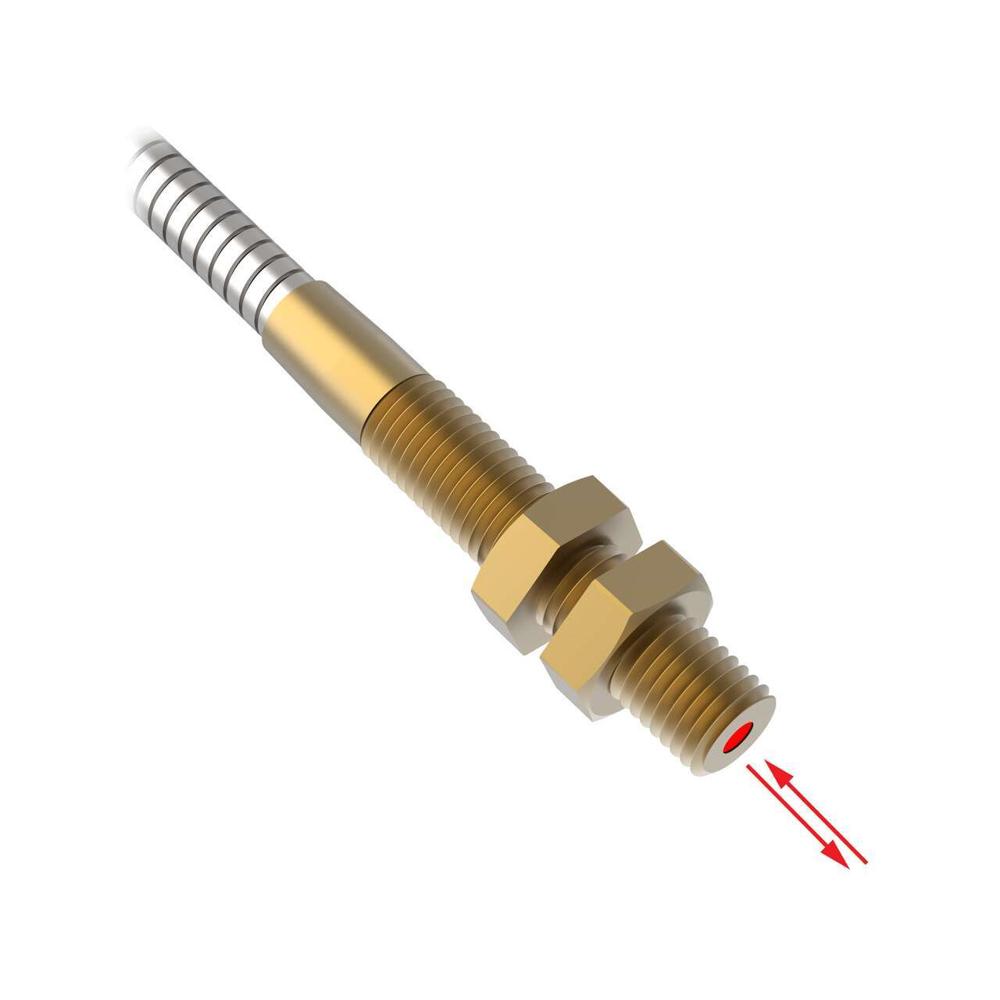

BT210S Heavy Duty Fiber Optics
