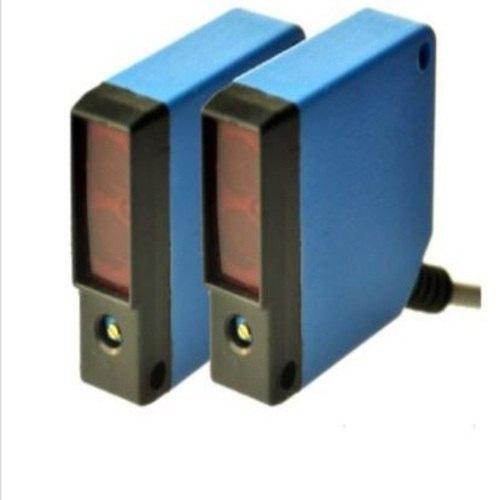

Send InquiryIR RETRO-REFLECTIVE SENSOR - RECTANGULAR 5055
MOQ : 1 Piece
IR RETRO-REFLECTIVE SENSOR - RECTANGULAR 5055 Specification
- Interface
- Wired 3-wire/4-wire
- Cable Length
- 2 meters
- Signal Type
- Digital
- Application
- Packaging, Conveyor System, Material Handling
- Features
- Reverse Polarity Protection, Short Circuit Protection, LED Status Indicator
- Sensor Type
- Retro-Reflective IR Sensor
- Sensitivity
- Adjustable via Potentiometer
- Measurement Range
- 0.1 to 3 meters
- Power Consumption
- < 2 W
- IP Rating
- IP65
- Response Time
- <1 ms
- Wireless
- No
- Mounting Type
- Panel/Bracket Mountable
- Operating Temperature
- -10C to +60C
- Product Type
- IR Retro-Reflective Sensor - Rectangular 5055
- Material
- ABS Plastic Housing
- Input
- 10-30V DC
- Output
- NPN/PNP
- Function
- Retro-reflective Object Detection
- Usage
- Industrial Automation, Object Presence Sensing
- Accuracy
- High Precision Sensing
- Resolution
- Adjustable
- Voltage
- 30 Volt (v)
- Weight
- Approx. 80g
- Connection Type
- Pre-wired Cable
- Light Source
- Infrared LED 850 nm
- Reflector Included
- Yes
- Output Current
- Max 200mA
- Detection Method
- Retro-reflective with Reflector
- Housing Dimensions
- 50mm x 25mm x 15mm
- Status Indicator
- Red/Green Dual LED
- Switching Frequency
- Up to 500 Hz
- Ambient Humidity
- 35% to 85% RH (Non-Condensing)
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Banner Sensor Category

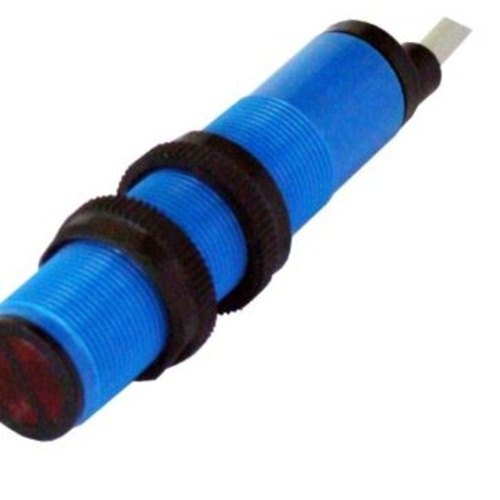

IR DIFFUSE SCAN SENSOR- 2 WIRE AC
Minimum Order Quantity : 1 Piece
Input : 2 Wire AC
Product Type : IR Diffuse Scan Sensor
Output : nc/no
Material : abs plastic

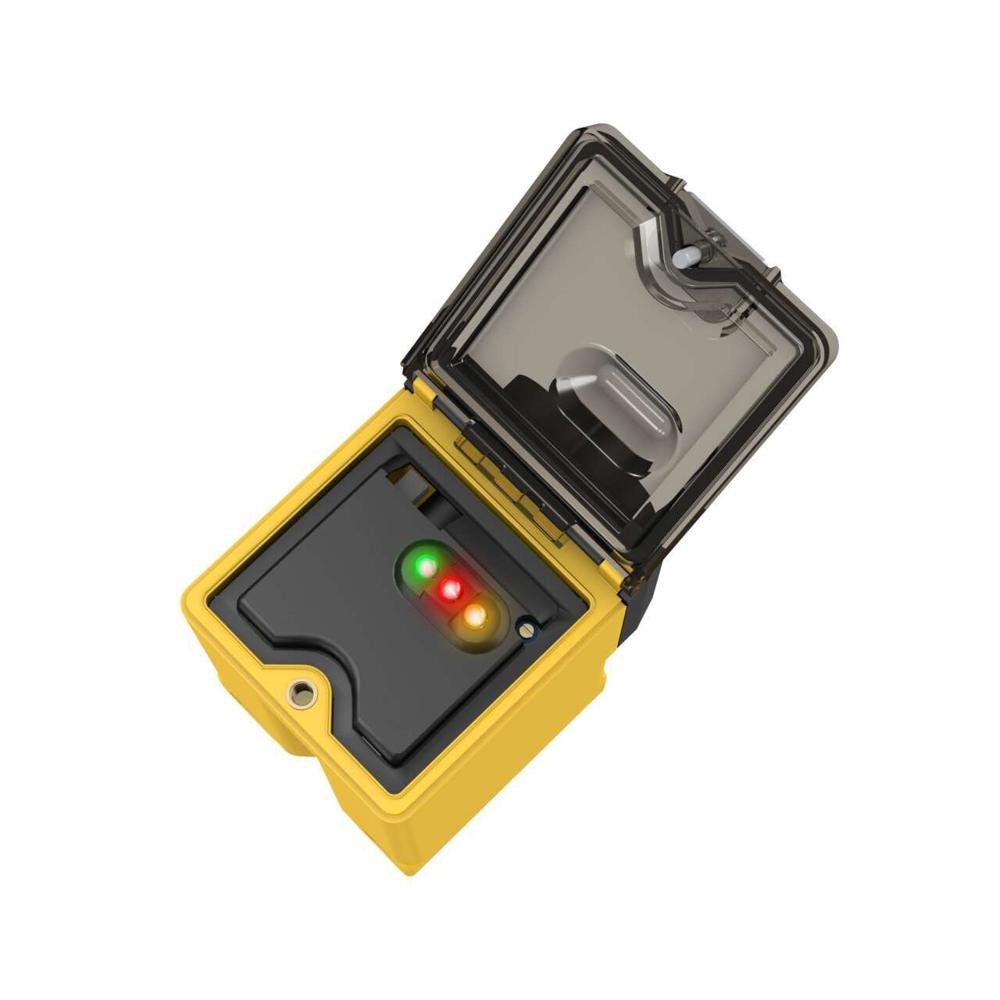

DX80N9Q45LP photoelectric sensors
Price 35868.0 INR / Piece
Minimum Order Quantity : 1 Piece
Input : 10 v
Product Type : sensor
Output : 30 v

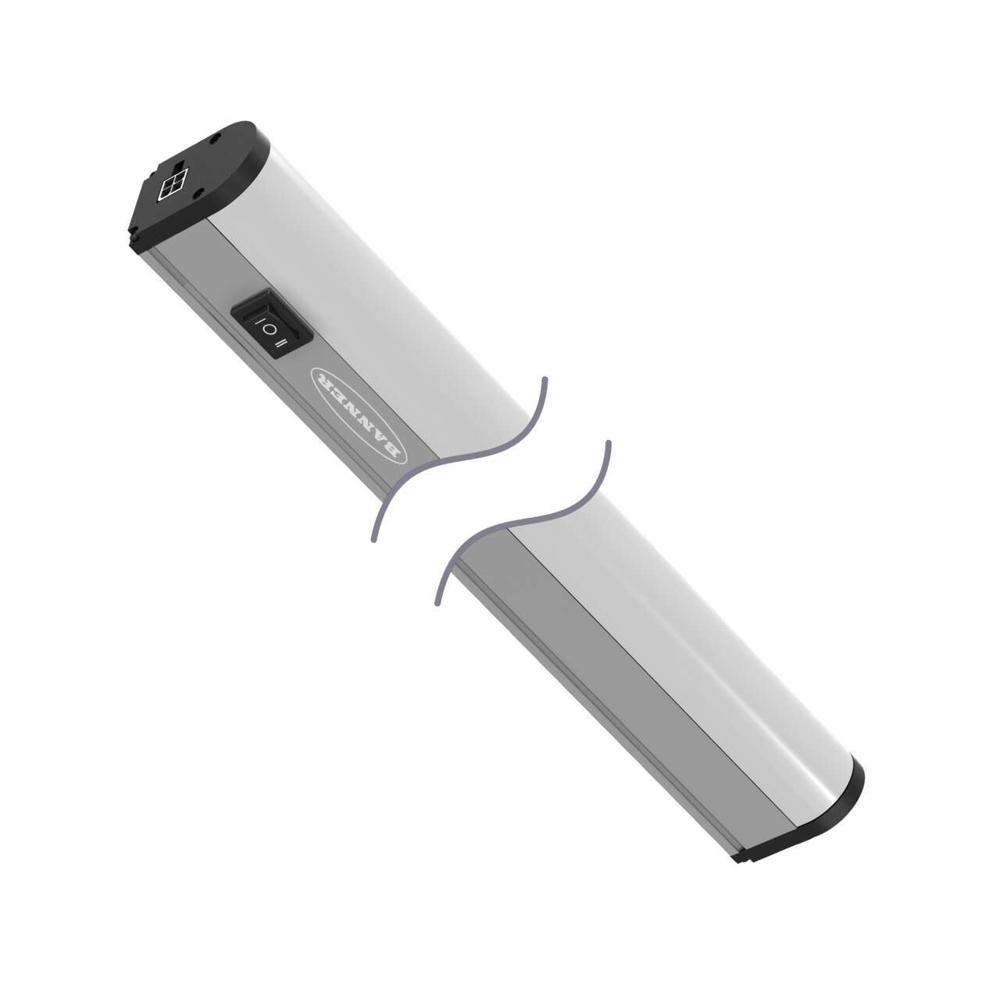

WLB32ZC1130PBQMB LED WORKSTATION LIGHT
Price 25725.0 INR / Piece
Minimum Order Quantity : 1 Piece
Input : 90 v
Product Type : led light

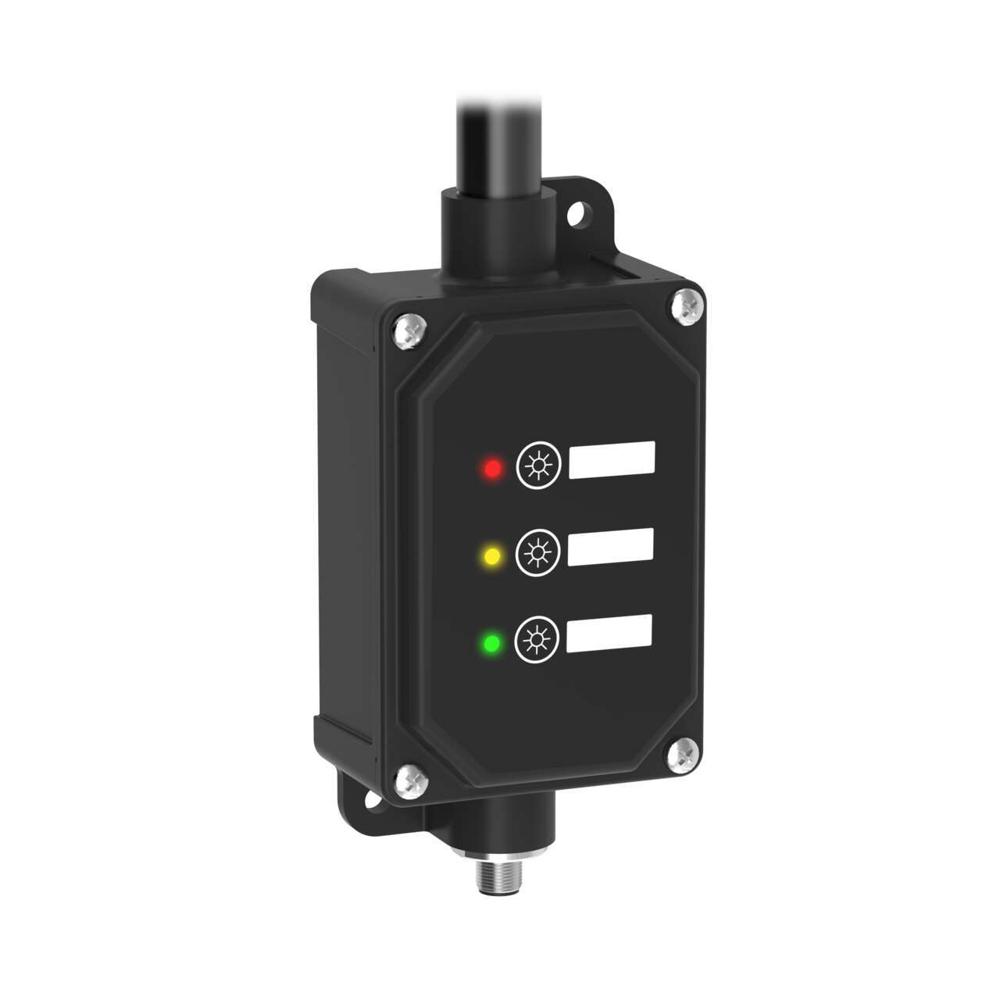

LCA130T3-TL50GYR900Q ANDON TOWER LIGHT
Price 22080.0 INR / Piece
Minimum Order Quantity : 1 Piece
Input : 18 v
Product Type : Tower Light
Output : 30 v
Material : polycarbonate
