Send InquiryIR DIFFUSE SCAN SENSOR - RECTANGLE 4028
MOQ : 1 Piece
IR DIFFUSE SCAN SENSOR - RECTANGLE 4028 Specification
- Power Consumption
- <10 mA
- Measurement Range
- 10 mm to 400 mm (Adjustable)
- Features
- Ambient Light Immunity, LED Status Indicator, Reverse Polarity Protection
- Application
- Packaging Machines, Conveyor Detection, Automation Equipment
- Signal Type
- Digital
- Sensitivity
- Adjustable Potentiometer
- Sensor Type
- Infrared Diffuse Scan Type
- Interface
- 3-Wire Connection
- Response Time
- <1 ms
- IP Rating
- IP67
- Operating Temperature
- -10C to +55C
- Cable Length
- 2 m
- Mounting Type
- Panel / Bracket Mounting
- Wireless
- No
- Product Type
- Diffused
- Input
- 10-30V DC
- Output
- NPN/PNP
- Function
- Object Detection via Diffuse Reflective Sensing
- Usage
- Industrial Automation, Object Sensing
- Accuracy
- High (Standard for Diffuse Proximity Sensors)
- Resolution
- Approx. 0.2 mm
- Voltage
- 10-30 VDC
- Weight
- Approx. 50 g
- Display Type
- NO
- Material
- ABS PLASTIC
- Connection Type
- Pre-wired Cable
- Vibration Resistance
- 10-55 Hz, amplitude 1.5 mm
- Indicator
- LED (Yellow) for Output Status
- Operating Humidity
- 35-85% RH (Non-condensing)
- Switching Frequency
- Up to 500 Hz
- Shock Resistance
- 10G 16 ms duration
- Light Source
- Infrared LED, 880 nm wavelength
- Material Finish
- Matte Black
- Housing Dimensions
- 40 mm x 28 mm x 15 mm
- Current Output
- Max 150 mA
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Banner Sensor Category

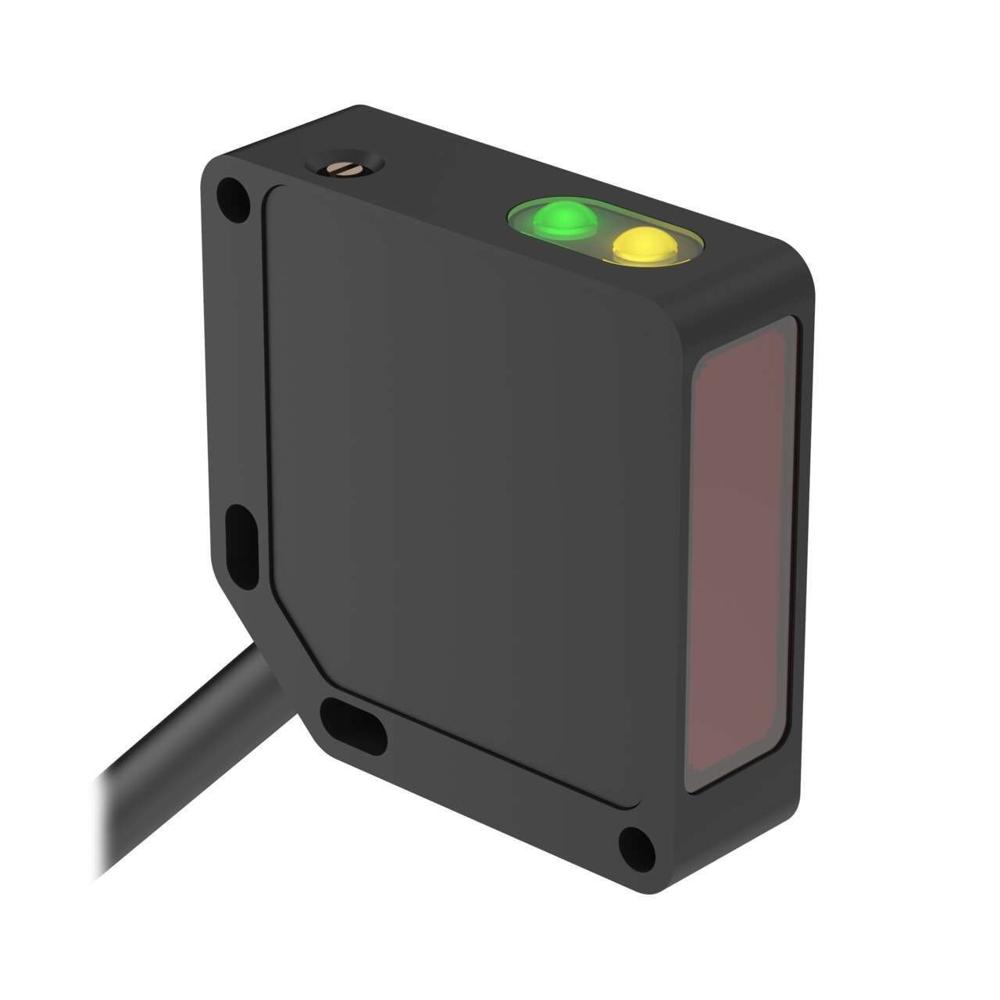

QM42VP6D Q26 Series Clear Object Sensor
